DR-RG-6P - Tipping Bucket Rain Gauge
DR-RG-6P - Tipping Bucket Rain Gauge
Art.Nr.:
DR-RG-6P
Wird geladen …
sku
DR-RG-6P
Produktbeschreibung

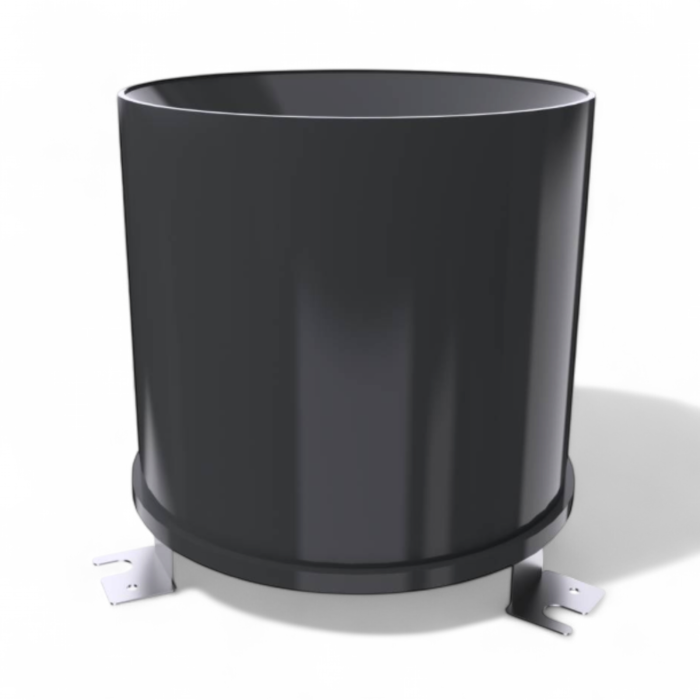

Tipping Bucket Rain Gauge for WSC2-Compact series.
- Rain-bearing diameter: 200mm
- Sharp angle of blade: 40° ~ 45°
- Range: default 0~100mm/day
- Resolution: 0.1mm
- Rain intensity range: 0.01~4mm/min
- Output signal: pulse signal
- Cable specifcation: 2 meters 2 wire system

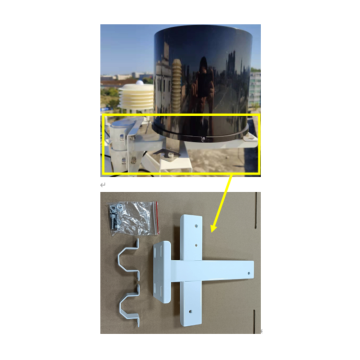

The Rain Gauge includes screws so you can install on ground or flat surface. If you want to install on pole, you can use WS-K2 bracket kit. (see below).
This sensor is only suitable for WSC2-Compact. Other applications are not supported.
